TMMP3X185 standard jaw pullers,versatile two and three arm mechanical pullers

  • TMMP3X185 standard jaw pullers,versatile two and three arm mechanical pullers
  • TMMP3X185 standard jaw pullers,versatile two and three arm mechanical pullers
Место происхождения ВЕНГРИЯ
Model Number TMMP3X185
Количество мин заказа 1 набор
Цена USD1-350 per set
Упаковывая детали Оригинал
Delivery Time 1-2 days for ready goods
Условия оплаты T/T, Western Union
Поставка способности 5 комплектов в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Оставьте сообщение
Характер продукции

Standard jaw pullers

Versatile two and three arm mechanical pullers

TMMP3X185 standard jaw pullers,versatile two and three arm mechanical pullers 0
TMMP3X185 standard jaw pullers,versatile two and three arm mechanical pullers 1

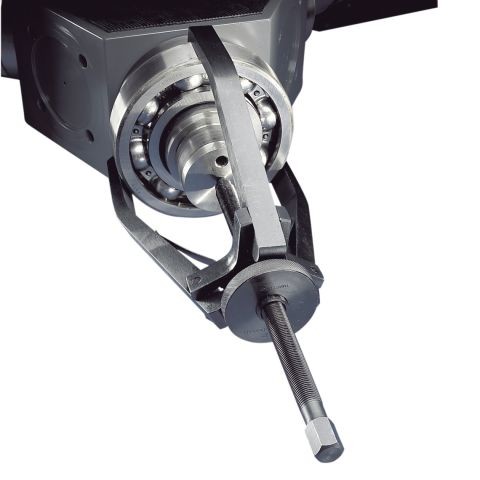

One of the easiest and most effective ways to dismount small to medium size bearings is to use a mechanical puller. Using an jaw puller helps ensure that no damage is caused to the bearing or to the bearing seating during dismounting. standard jaw pullers offer you easy and safe jaw puller operation.

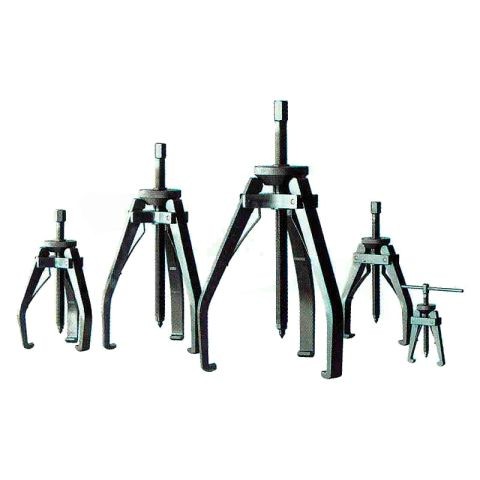

  • Range of five different jaw pullers with two or three arms
  • Maximum nominal span from 65 to 300 mm (2.6 to 11.8 in.)
  • Cone system for automatic centring and secure positioning of arms
  • Strong springs to keep arms apart for easy operation
  • Hardened, high quality carbon steel
Technical data (metric)
Designation No.
of
arms 		Width
of grip 		Effective
length
of arms 		Max.
with-
drawal
force 		Weight
  qty mm mm kN kg
TMMP 2x65 2 65 60 6,0 0,4
TMMP 2x170 2 170 135 18,0 1,9
TMMP 3x185 3 185 135 24,0 2,5
TMMP 3x230 3 230 210 34,0 5,5
TMMP 3x300 3 300 240 50,0 9,0
Technical data (imperial)
Designation No.
of
arms 		Width
of grip 		Effective
length
of arms 		Max.
with-
drawal
force 		Weight
  qty in in lbf lb
TMMP 2x65 2 2.6 2.4 1,340 0.9
TMMP 2x170 2 6.7 5.3 4,030 4.2
TMMP 3x185 3 7.3 5.3 5,380 5.5
TMMP 3x230 3 9.1 8.3 7,610 12
TMMP 3x300 3 11.8 9.4 11,200 20
