110TAC150B ball screw support bearing,high precision bearings

  • 110TAC150B ball screw support bearing,high precision bearings
Место происхождения Китай
Фирменное наименование Neutral or OEM
Сертификация ISO9001
Model Number 110TAC150B
Количество мин заказа 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 20days custom made
Условия оплаты T/T, Western Union, Paypal, L/C
Поставка способности 20000 ПК/месяц

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Оставьте сообщение
Характер продукции

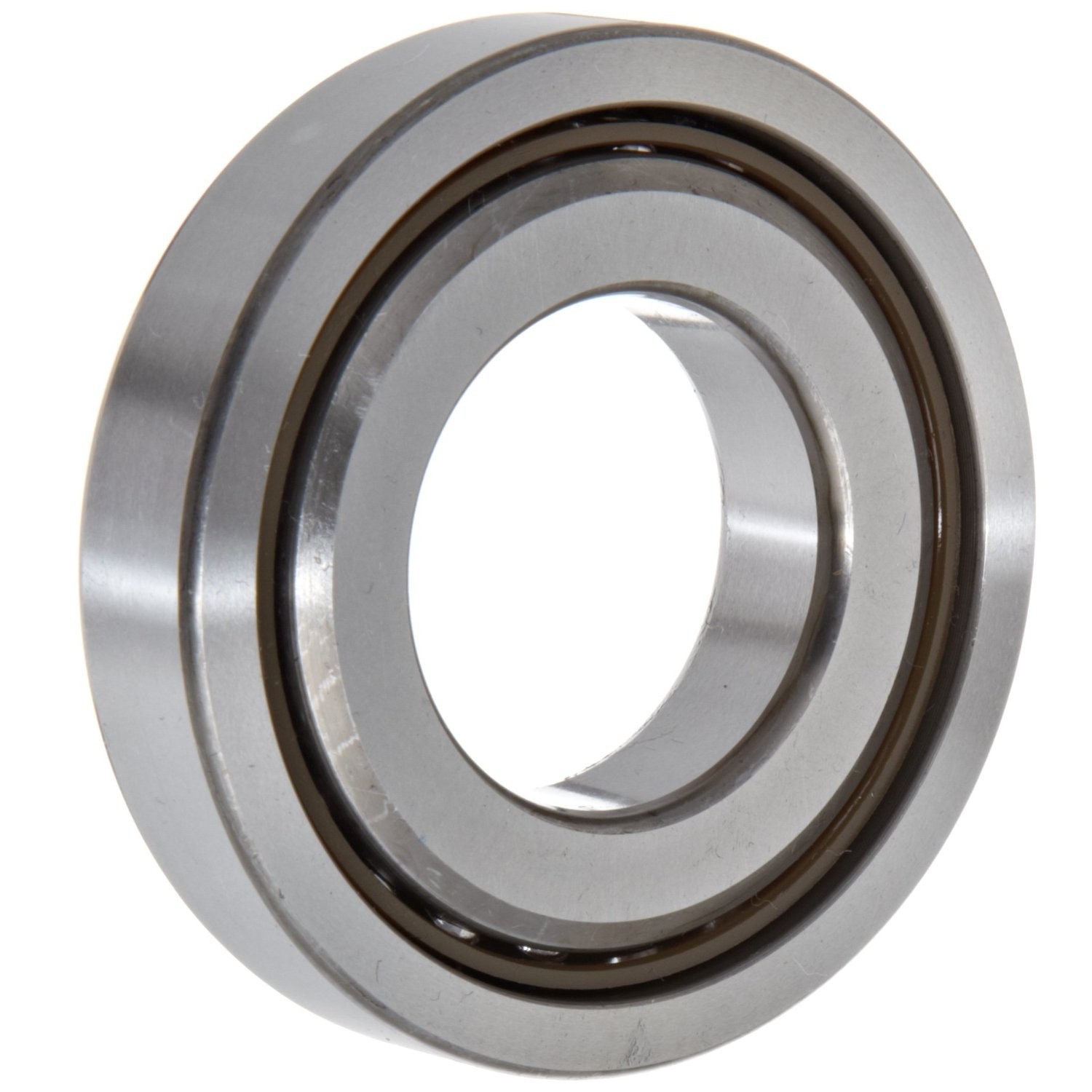

High precision ball screw support bearing 110TAC150B

angular contact thrust bal bearings, with contact angle α = 60°

110TAC150B ball screw support bearing,high precision bearings 0110TAC150B ball screw support bearing,high precision bearings 1

Bearing Name Ball Screw Bearings 110TAC150B
Bearing Class Axial Angular Contact Ball Bearing
China Code BSB110150
FAG Code BS110150
Model 110TAC150B
d 100 mm
D 150 mm
B 22.5 mm
Weight 2.187 kg
Contact Angle  60°
Cage Polyamide Resin Cage
Tolerance P4/ABEC-7&P2/ABEC-9

Note:Sealed ball screw support bearings are available.

Features of the Bearings:

►High-precision angular contact thrust ball bearing supports ball screw units in machine tool applications

►Ball contact angle of 60 degrees relative to the inner and outer raceways increases thrust load capacity

►Open configuration for lubrication applied in place

►Polyamide resin retainer evenly spaces balls for reduced friction, vibration, and noise

►ISO class 4 tolerance rating for precise tool positioning and high rotational speeds

Unide Bearing is specialized in supplying ball screw support bearing 110TAC150B.This bearing is ued in machine part which support high rotating speed.Unide Bearing has a full range of ball screw support bearings,including 7602,7603,TAC,BS series.We have rich stock numbers for ball screw support bearings.Meanwhile,we distribute NTN NSK NACHI FAG TIMKEN bearings with attractive price.
