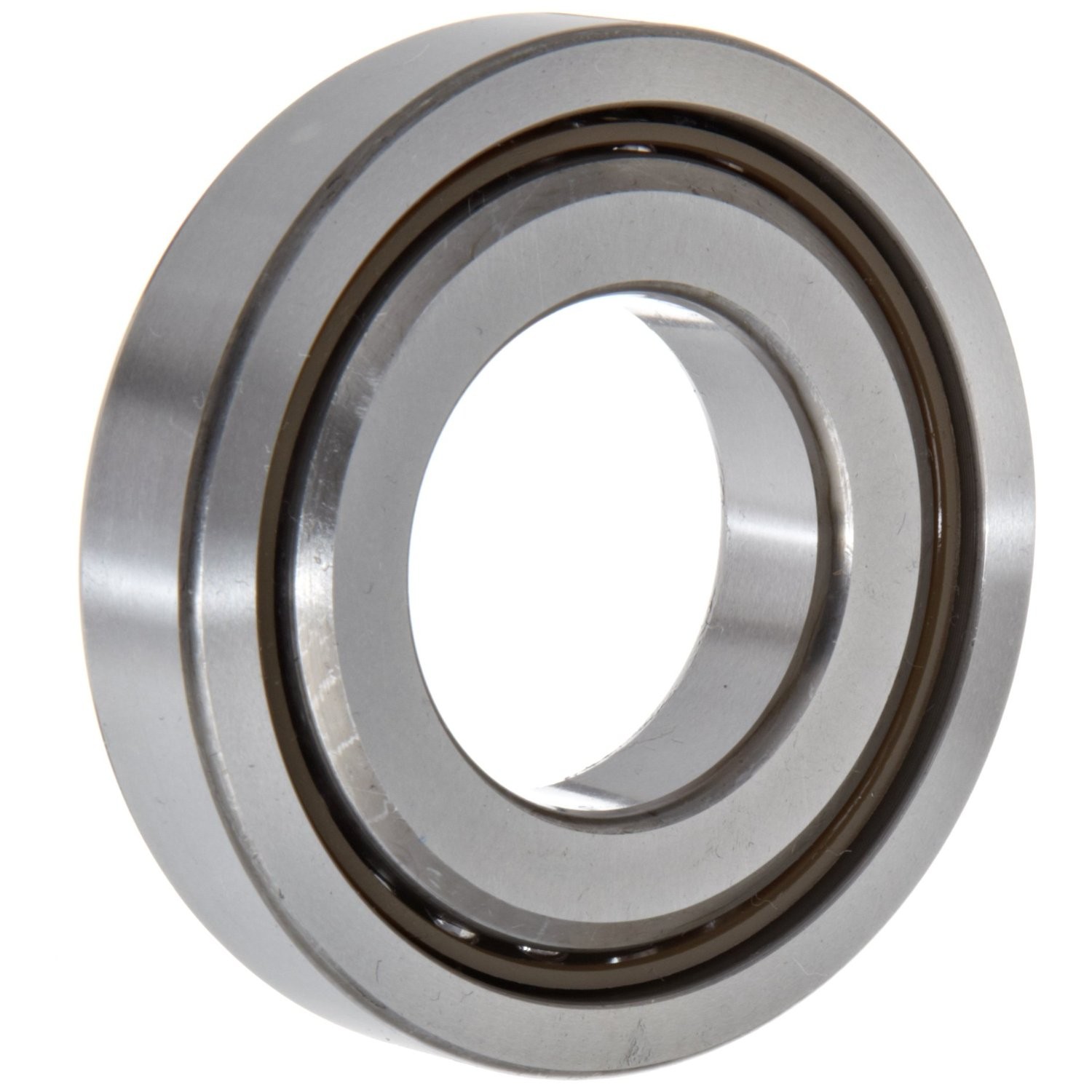

55TAC90B ball screw support bearing,bore 55mm

  • 55TAC90B ball screw support bearing,bore 55mm
Место происхождения Китай
Фирменное наименование Neutral or OEM
Сертификация ISO9001
Model Number 55TAC90B
Количество мин заказа 5
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Условия оплаты T/T, Western Union, Paypal, L/C
Поставка способности 20000 ПК/месяц
Подробная информация о продукте
Precision Rating P4;P2 Количество ряда Однократный ряд
Оставьте сообщение
Характер продукции

High precision ball screw support bearing 55TAC90B

angular contact thrust bal bearings, with contact angle α = 60°

55TAC90B ball screw support bearing,bore 55mm 055TAC90B ball screw support bearing,bore 55mm 1

Bearing Name Ball Screw Bearings 55TAC90B
Bearing Class Axial Angular Contact Ball Bearing
China Code BSB055090
FAG Code BS5590
Model 55TAC90B
d 55 mm
D 90 mm
B 15 mm
Weight 0.537 kg
Contact Angle  60°
Cage Polyamide Resin Cage
Tolerance P4/ABEC-7

Note:Sealed ball screw support bearings are available.

Features of the Bearings:

►High-precision angular contact thrust ball bearing supports ball screw units in machine tool applications

►Ball contact angle of 60 degrees relative to the inner and outer raceways increases thrust load capacity

►Open configuration for lubrication applied in place

►Polyamide resin retainer evenly spaces balls for reduced friction, vibration, and noise

►ISO class 4 tolerance rating for precise tool positioning and high rotational speeds
