829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm

  • 829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm
  • 829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm
  • 829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm
Место происхождения Китай
Model Number 829748
Количество мин заказа 1 шт
Цена USD 1-100 per pcs
Упаковывая детали Промышленное
Delivery Time 1-3 days for ready goods
Условия оплаты T/T;Western Union;Paypal
Поставка способности 3000 шт в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Материал Подшипник стальной GCR15 Клетка Латунь
Номер строки Два
Оставьте сообщение
Характер продукции

829748 bearing 240x320x96mm

thrust taper roller bearing

double direction

rich stock

low price

829748 bearing details:
829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm 0
Bearing
Main Dimension(mm)
Load Rating(kN)
Mass

d
D
 H
Dyn.C
Stat.Co
kg
829748
240
 320 96 430 2000 20
FAG code
 529086





code
 351182C





China code 829748
Double direction tapered roller thrust bearings
Tapered roller thrust bearings of the double direction type are mainly used together with multi-row cylindrical roller bearings in rolling mill applications. Those bearings with a plane shaft washer are the more popular as they are able to accommodate slight eccentricities of the shaft with respect to the housing bore, of the order of the radial internal clearance of the radial bearing with which they are used. A spacer sleeve is arranged between the two housing washers. This is dimensioned so that the cover screws of the chock can be fully tightened and no special spring adjustment of the bearing is required.

The double direction tapered roller thrust bearings with tapered raceways on the shaft and housing washers generally have a higher axial load carrying capacity than the bearings with a plane shaft washer and are able to radially locate the shaft to a certain extent. If the load carrying capacity of these bearings is inadequate with respect to the requisite life, double row tapered roller bearings with large contact angle of the TDIS design can be used instead,

As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.

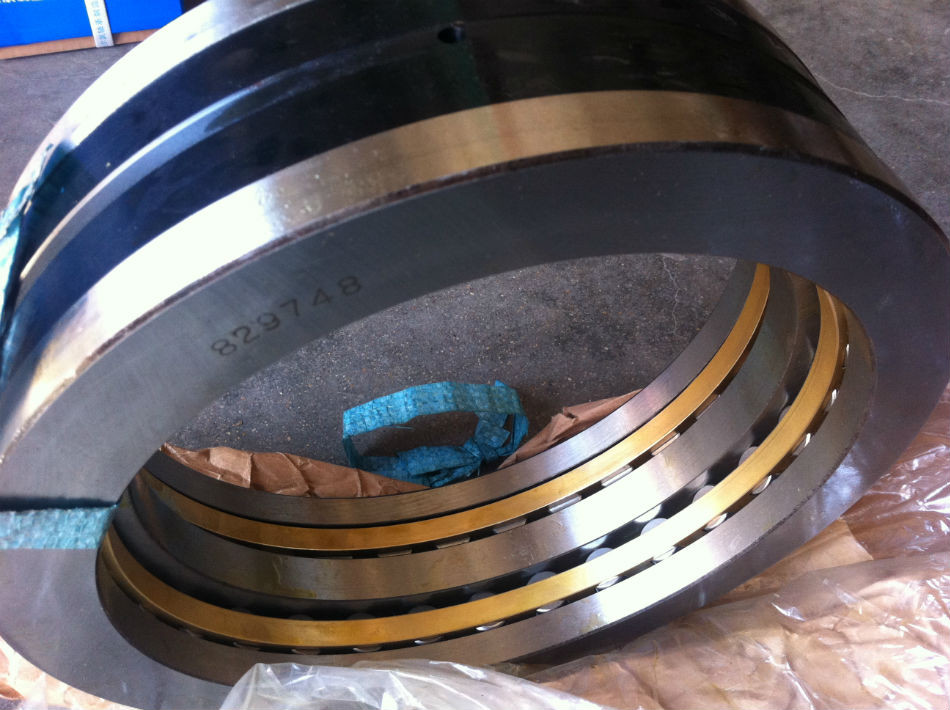

829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm 1

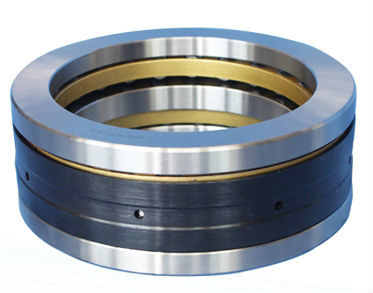

829748 double direction taper roller thrust bearings for rolling mills 240x320x96mm 2
