Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore

  • Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore
  • Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore
  • Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore
  • Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore
Место происхождения Китай
Фирменное наименование KORTON NEUTRAL OEM
Сертификация ISO9001
Model Number FC4064216
Количество мин заказа 1 шт
Цена ASK
Packaging Details Color belt&wooden case or customer's request
Delivery Time 3-5 days for stocks;within 15 days by order manufacturing
Условия оплаты T/T;Western Union;Paypal
Поставка способности 100 ПК/месяц

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Оставьте сообщение
Характер продукции

FC4064216 rolling mill bearing 200x320x216 mm,cylindrical roller bearing,four row

--for interference fit on the roll neck,with circumferential lubricating grooves and lubricating holes on the outer ring

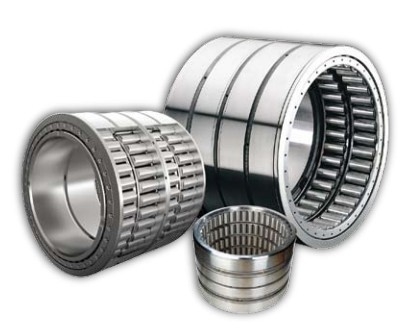

Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore 0

FC4064216 bearing details:
Bearing Main Dimension(mm) Load Rating(kN) Mass
Design d D B F  Dyn.C Stat.Co kg
FC4064216 200 320 216 231 1794 3404 67
  FAG code
  code
  NTN code
  NSK code
FC4064216 China Code

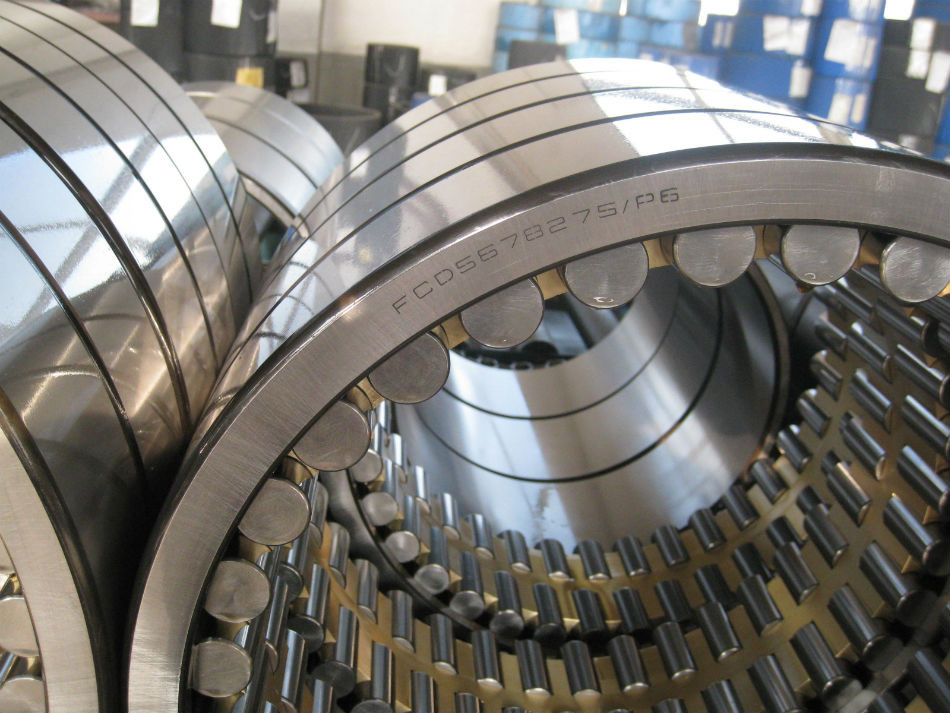

Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore 1
Description:
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

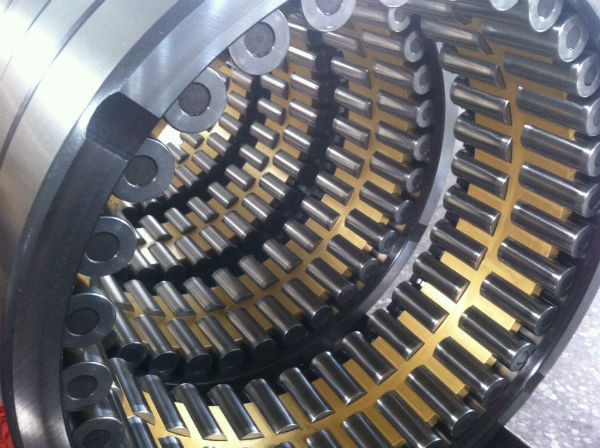

Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore 2

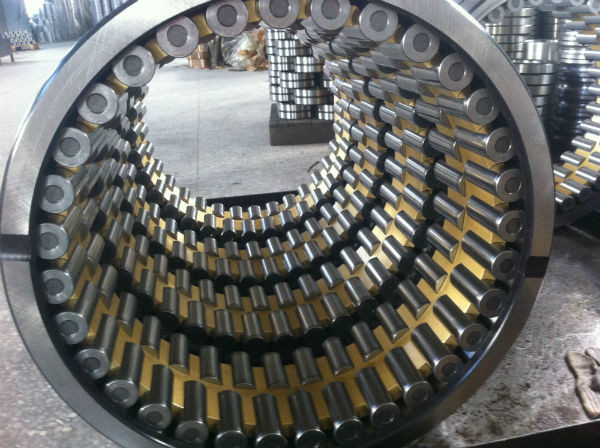

Four row cylindrical roller bearing FC4064216.removable inner ring,straight bore 3

Part of Rolling Mill Bearings table:
Fag code Fag old code  code Nsk-code   Ntn-code   Koyo-code
Z-502894.02.ZL 502894B 314190 160RV2301 4R3226 314190
Z-504547.ZL 504547 635194
Z-506962.ZL 506962 313891A 150RV2302 4R3040 313891-1
Z-507333.ZL 507333 313839 220RV3101 4R4426 313837A
Z-507336.ZL 507336 313823 260RV3701 4R5208 313823
Z-507339.ZL 507339 313822 280RV3901 4R5611 313822
Z-507344.ZL 507344 314385 200RV2804 4R4048 40FC28170
Z-507536.ZL 507536 313812 180RV2601 4R3628 313812W
Z-507735.ZL 507735 313651 190RV2601 4R3820 38FC26168-1
Z-508657.ZL 508657 314199B 190RV2701 4R3821 314199
Z-508726.ZL 508726 313893 200RV2802
Z-508727.ZL 508727 313824 230RV3301 4R4610 313824
Z-510150.02.ZL 510150B 315189A 160RV2302 4R3232
Z-511605.ZL 511605 314625 145RV2101 4R2906 29FC21155
Z-512580.ZL 512580 313811 200RV2901 4R4041 313811
Z-512764.ZL 512764 313924A 145RV2201 4R2904 313924
Z-522742.ZL 522742 314553   4R4039 314553
Z-524289.02.ZL 524289B 314484D 300RV4221 4R6020 4CR300
Z-527104.ZL 527104 314719 280RV3903
Z-527634.ZL 527634 314485 340RV4801 4R6819 68FC48350D
Z-529468.N12BA   529468.N12BA 315642/VJ202
Z-543975.ZL 543975 314486A 370RV5211
Z-804868.ZL-N12BA   804868.N12BA 314997VJ/202
