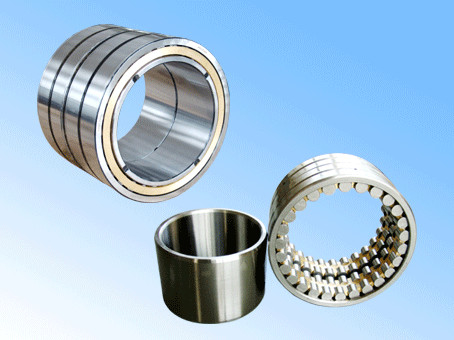

BC4B635122 rolling mill bearings 170*240*130mm

  • BC4B635122 rolling mill bearings 170*240*130mm
Model Number BC4B635122
Количество мин заказа 1 набор
Цена ASK
Packaging Details Industrial/Customized
Delivery Time 3-5 days for stock numbers;within 20 days by order manufacturing
Условия оплаты T/T, Western Union, Paypal, L/C

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Оставьте сообщение
Характер продукции



Bearing No. BC4B635122  BC4B635122 rolling mill bearings 170*240*130mm 0
Main Dimension mm
Inside Dia-d 170
Outside Dia-D 240
Width-B 130
Fw 190
Mass 18.7
OEM Service Yes
Cage
Structure Cylindrical
Bearing Type Cylindrical Roller Bearing,Four Row
Interchange China FC3448130
BC4B635122
FAG
NTN
NSK
KOYO

Description

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
