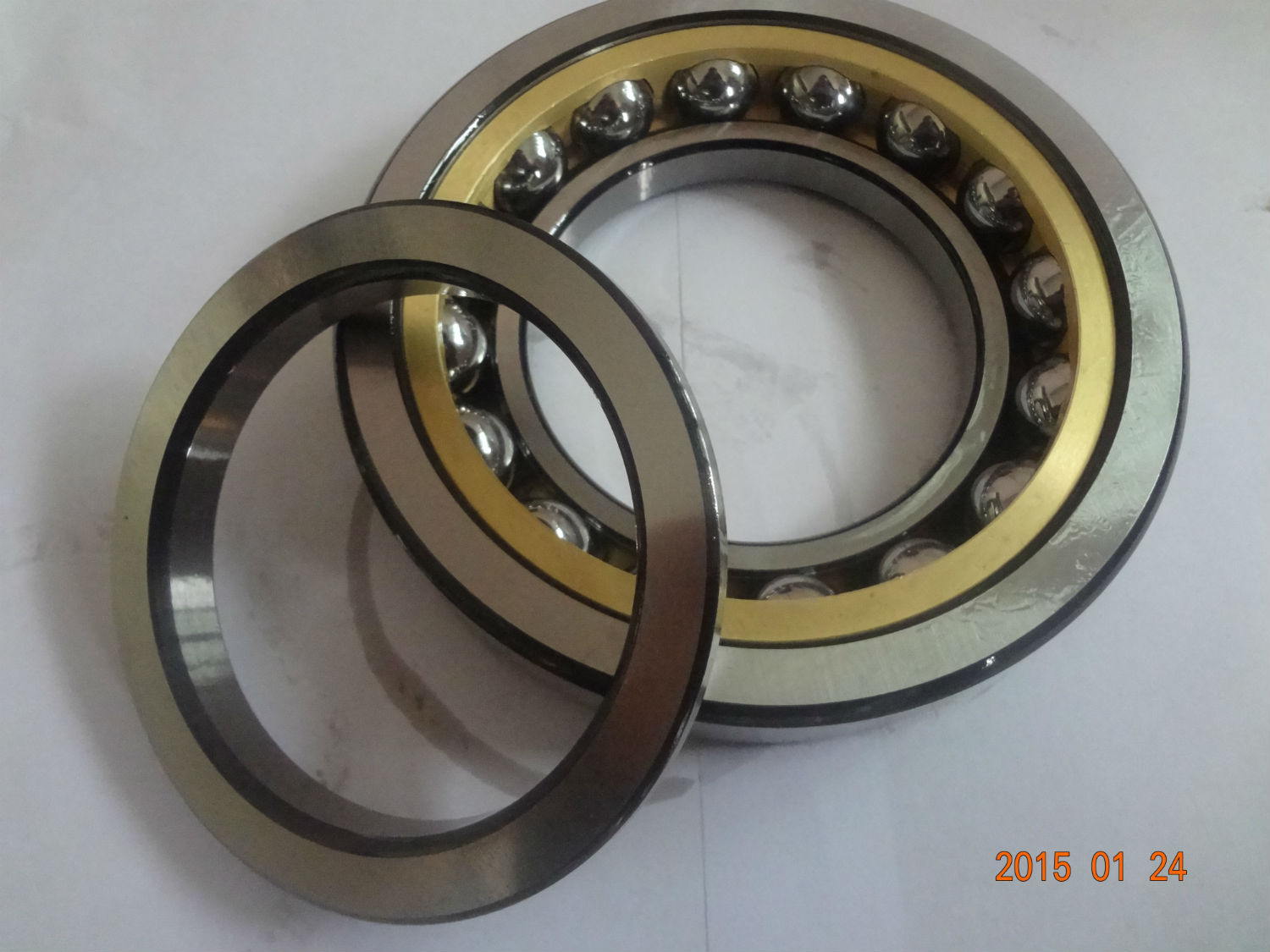

Four-point angular contact ball bearing QJ218 N2MA

  • Four-point angular contact ball bearing QJ218 N2MA
Место происхождения Китай
Model Number QJ218N2MA
Количество мин заказа 5 шт
Цена ASK
Упаковывая детали Промышленный стандарт
Delivery Time 3-5 days for stocks;within 15 days by order manufacturing
Условия оплаты T/T, Western Union, Paypal, L/C
Поставка способности 5000 ПК/месяц
Подробная информация о продукте
Точный рейтинг ABEC-1 Тип уплотнений Открыть
Количество ряда Однократный ряд
Оставьте сообщение
Характер продукции

QJ218 N2MA,angular contact ball bearing,ABEC-1 precision,four-point contact design,brass cage,35 degree contact angle,normal clearance,open,metric

QJ218 N2MA data:

d:90 mm

D:160 mm

B:30 mm

Basic load ratings(kN):

Dynamic(C):186

Static(Co):200

Mass:2.75 kg

The four-point-contact ball bearing is a single row angular contact bearings designed to handle two-directional axial loading. These bearings require a minimum amount of space and can be custom designed to meet our customer's unique loading parameters. And the four-point-contaact ball bearings can carry either pure axial loading or combined loading provided the axial component is more significant.

For heavy industrial requirements, this style of bearing can be designed as a large slewing ring bearing with bolted down races and internal or external integral gearing.
