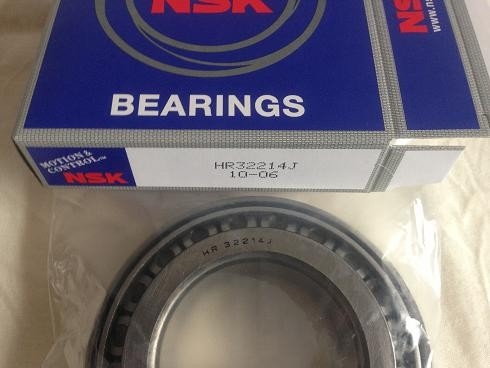

HR32214J NSK bearing,single row taper roller bearings

  • HR32214J NSK bearing,single row taper roller bearings
Место происхождения Япония
Фирменное наименование NSK
Model Number HR32214J
Количество мин заказа 1
Цена US$8.50
Packaging Details NSK plastic bag+single box
Delivery Time 3 days in stock;within 20 days for order manufacture
Условия оплаты T/T;Western Union;Paypal
Поставка способности 10000 ПК/месяц
Подробная информация о продукте
Количество ряда Однократный ряд
Оставьте сообщение
Характер продукции

HR32214J NSK Taper Roller Bearings,Single Row

Bearing Model HR32214J
Brand NSK
Bearing Category Taper Roller Bearing
Origin of Country Japan
d 70 mm
D 125 mm
T 33.25 mm
B 31 mm
C 27 mm
Mass 1.66 kg

HR32214J NSK bearing,single row taper roller bearings 0      HR32214J NSK bearing,single row taper roller bearings 1

Bearings of this type use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and axial loads in one direction.


In the HR series, the rollers are increased in both size and number giving it an even higher load capacity. They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. In this case, the proper internal clearance can be obtained by adjusting the axial distance between the cones or cups of the two opposed bearings. Since they are separable, the cone assemblies and cups can be mounted independently.

Depending upon the contact angle, tapered roller bearings are divided into three types; normal angle, medium angle, and steep angle.

Double-row and four-row tapered roller bearings are also available. Pressed steel cages are generally used.
HR30203J HR32217J HR30336 31328D HR32008J
HR30204J HR32218J HR30338 31330D HR32009J
HR30205J HR32219J HR30340 31332D HR32010J
HR30206J HR32220J HR30344 31334D HR32011J
HR30207J 32222J HR30348 31336D HR32012J
HR30208J 32224J HR30352 31338D HR32013J
HR30209J 32226J HR30356 31340D HR32014J
HR30210J 32228J HR32304J HR32907XJ HR32015J
HR30211J 32230J HR32305J HR32908XJ HR32016J
HR30212J 32232J HR32306J HR32909XJ HR32017J
HR30213J 32234J HR32307J HR32910XJ HR32018J
HR30214J 32236J HR32308J HR32911XJ HR32019J
HR30215J 32238J HR32309J HR32912XJ HR32020
HR30216J 32240J HR32310J HR32913XJ HR32021
HR30217J 32244J HR32311J HR32914XJ HR32022
HR30218J 32248J HR32312J HR32915XJ HR32024
HR30219J 32252J HR32313J HR32916XJ HR32026
HR30220 32256J HR32314J HR32917XJ HR32028
HR30221 32260J HR32315J HR32918XJ HR32030
HR30222 32264J HR32316J HR32919XJ HR32032
HR30224 HR30302J HR32317J HR32920XJ HR32034
HR30226 HR30303J 32318J HR32921XJ HR32036
HR30228 HR30304J 32319J HR32922XJ HR32038
HR30230 HR30305J 32320J 32924XJ HR32040
HR30232 HR30306J 32321J 32926XJ HR32044
HR30234 HR30307J 32322J 32928XJ HR32048
HR30236 HR30308J 32324J 32930XJ HR32052
HR30238 HR30309J HR31305D 32932XJ HR32056
HR30240 HR30310J HR31306D 32934XJ HR32060
HR30244 HR30311J HR31307D 32936XJ HR32064
HR30248 HR30312J HR31308D 32938XJ HR33008J
HR30252 HR30313J HR31309D 32940XJ HR33009J
HR32203J HR30314J HR31310D 32944XJ HR33010J
HR32204J HR30315J HR31311D 32948XJ HR33011J
HR32205J HR30316J HR31312D 32952XJ HR33012J
HR32206J HR30317J HR31313D 32956XJ HR33013J
HR32207J HR30318J HR31314D 32960XJ HR33014J
HR32208J HR30319 HR31315D 32964XJ HR33015J
HR32209J HR30320 HR31316D 32968XJ HR33016J
HR32210J HR30322 31317D 32972XJ HR33017J
HR32211J HR30324 31318D HR32004J 33018J
HR32212J HR30326 31319D HR320/22J 33019J
HR32213J HR30328 31320D HR32005J 33020J
HR32214J HR30330 31322D HR32006J 33021J
HR32215J HR30332 31324D HR320/32J 33022J
HR32216J HR30334 31326D HR32007J 33024J
