SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row

  • SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row
  • SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row
  • SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row
Место происхождения Китай
Фирменное наименование Neutral INA
Model Number SL06030E
Количество мин заказа 1 шт
Цена ASK
Packaging Details Industrial or customerized
Delivery Time 1-3 days for ready goods
Условия оплаты T/T;Western Union;Paypal
Поставка способности 5000 ПК/месяц

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Тип уплотнений Открыть Количество ряда Двойной ряд
Материал Подшипник стальной GCR15 Прозрачный Нормальный
Оставьте сообщение
Характер продукции

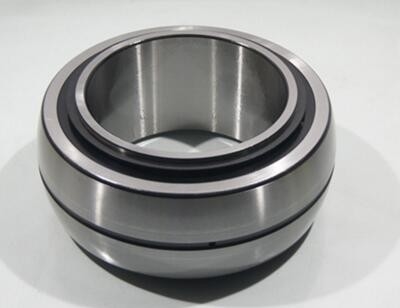

SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row 0

SL06030E bearing specifications:

INA No. Boundary Dimensions(mm) Basic loading(KN) Limiting Speed(r/min) Mass(KG)
d D B C rsmin s Dyn. Sta.
SL06030E 150 225 75 90 2.1 5 540 1020 700 10.5

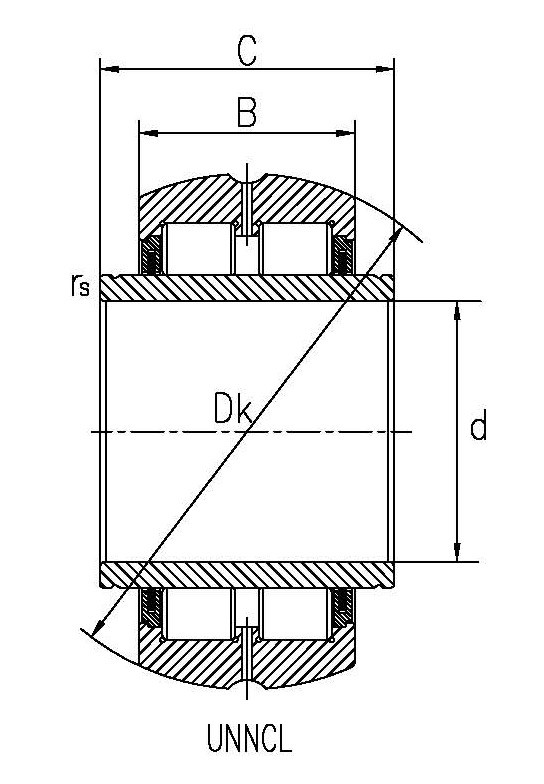

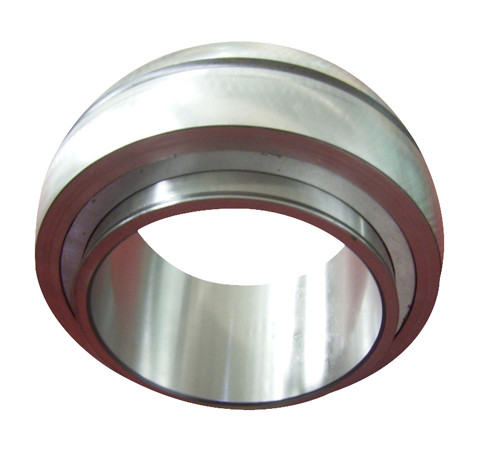

SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row 1 SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row 2

Structure:

Full complement cylindrical roller bearings have three main parts – the inner ring equipped with flanges, cylindrical rollers and the outer ring. According to the arrangement, snap rings, angle ring or seals are added.

SL06030E cylindrical roller bearing with spherical outside surface,full complement,double row 3



NCF
These are the most common full complement cylindrical roller bearings. The inner ring has two flanges, the outer ring has one flange on one side and a snap ring, which keeps the bearing assembled on the other side. NCF bearings are able to carry axial load from one side a they are able to accommodate certain minor axial displacement of the shaft. The
permissible values for this displacement are in the dimension tables.

Double row bearings

Double row full complement cylindrical roller bearings are all supplied with a lubrication groove with holes in the outer ring, which enables full lubrication access into the rolling space of each row of cylindrical rollers. The inner ring of the NNC, NNCL and NNCF design has three guiding flanges to ensure guiding accuracy of cylindrical rollers. They differentiate by the number of guiding flanges and snap rings in the outer ring. These components stop the rolling elements from falling out.

NNC
One side of outer ring is equipped with guiding flange, the other side has snap ring to keep the cylindrical rollers in place. These bearings can carry the axial load in both directions.

NNCL
NNCL bearings have the flangeless outer ring therefore certain axial bearing rings displacement against each other is accommodated.

NNCF
The outer ring has one flange and one snap ring. These components accommodate axial load transfer in one direction and also certain shaft displacement of the housing.

NNF
NNF bearings are produced with guiding flanges in the two-piece inner ring, which is held together by a retaining ring. The outer ring has a guiding flange. These bearings can also carry the axial load in both directions and as per bigger distance between individual rows of cylindrical rollers, they can transfer a tilting moments.
The outer ring of an NNF bearing is 1 mm narrower than the inner ring and has two snap ring grooves. These bearings are supplied as standard with seals on both sides and the inner space is filled with grease to enable the bearing operation in standard working conditions up to 110°C.

Locating bearing Non-Locating bearings Weight (kg) Dimensions (mm) Installation dimensions d1
d K ball diameter B/C B1 rs S1
SL05016 E   1.7 80 120 45   1.1   94
  SL06016 E 1.8 80 120 45 55 1.1 2.5 88
SL05018 E   2.8 90 140 50   1.5   106
  SL06018 E 2.95 90 140 50 60 1.5 2.5 100
SL05020 E   3.3 100 150 55   1.5   116
  SL06020 E 3.45 100 150 55 65 1.5 2.5 110
SL05022 E   4.9 110 170 60   2   130
  SL06022 E 5.2 110 170 60 75 2 5 124
SL05024 E   5.2 120 180 60   2   138
  SL06024 E 5.5 120 180 60 75 2 5 132
SL05026 E   7.4 130 200 65   2   154
  SL06026 E 7.8 130 200 65 80 2 5 146
SL05028 E   8.2 140 210 70   2   160
  SL06028 E 8.55 140 210 70 85 2 5 152
SL05030 E   10 150 225 75   2.1   175
  SL06030 E 10.5 150 225 75 90 2.1 5 166
SL05032 E   13.7 160 240 90   2.1   184
  SL06032 E 14.3 160 240 90 110 2.1 7.5 175
SL05034 E   17.4 170 260 95   2.1   196
  SL06034 E 18.1 170 260 95 115 2.1 7.5 186
SL05036 E   22.1 180 280 100   2.1   210
  SL06036 E 23 180 280 100 120 2.1 7.5 200
SL05038 E   25.1 190 290 110   2.1   222
  SL06038 E 26.5 190 290 110 135 2.1 10 212
SL05040 E   30.5 200 310 115   2.1   234
  SL06040 E 32 200 310 115 140 2.1 10 222
SL05044 E   40 220 340 125   3   262
  SL06044 E 42 220 340 125 150 3 10 248
SL05048 E   44 240 360 130   3   278
  SL06048 E 46 240 360 130 155 3 10 266



Unide Bearing is a leading supplier of full complement cylindrical roller bearings.Its products are manufactured with high-grade technology to guarantee the excellent performance in the usage.we supply single row,double row,three row full complement cylindrical roller bearings with open and sealed types.
